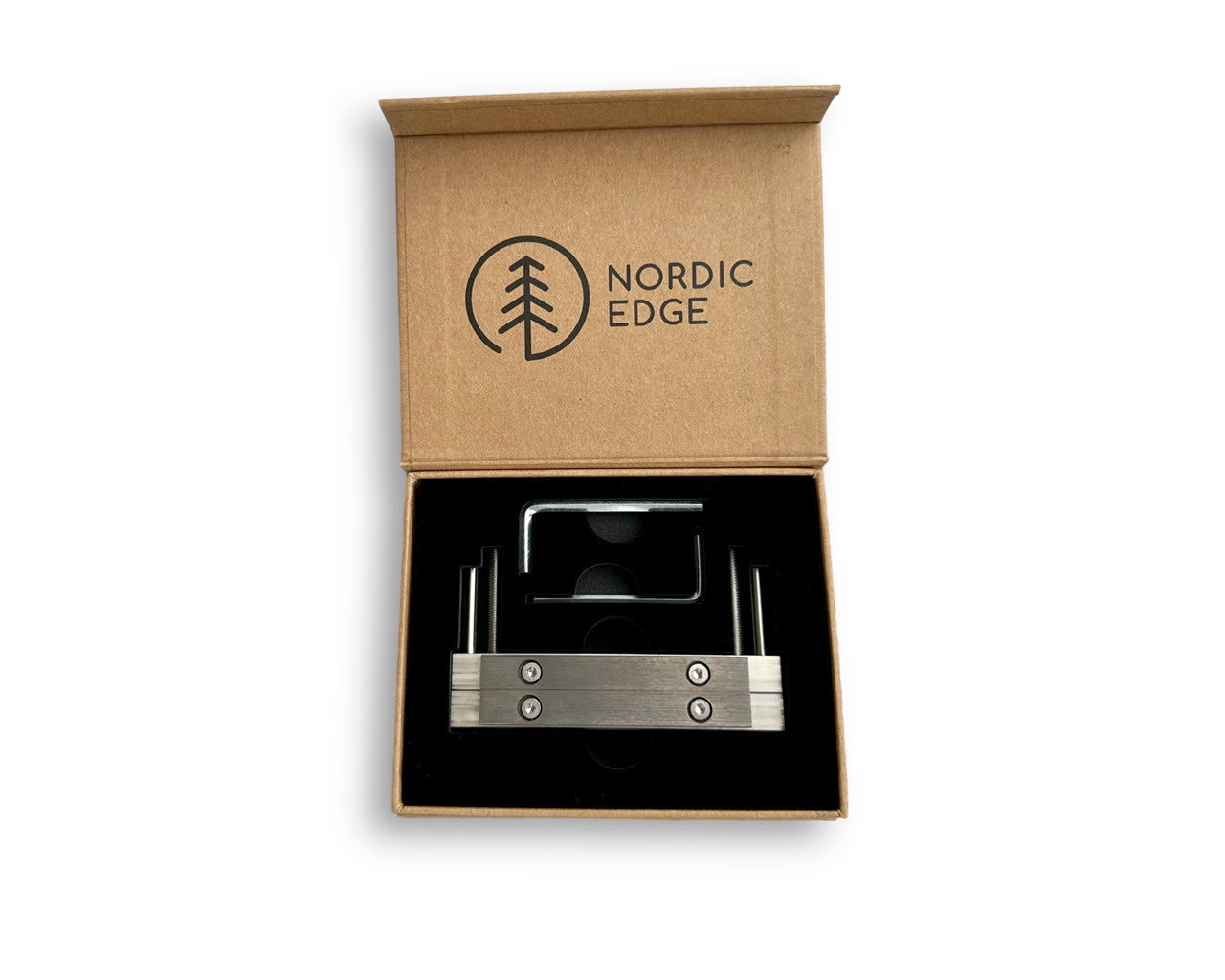

Carbide Faced File Guide, Stainless Steel, 70 mm

Carbide Faced File Guide, Stainless Steel, 70 mm

Regular price $139.00 USD
Regular price Sale price $139.00 USD
Sale Sold out

Carbide Faced File Guide, Stainless Steel, 70 mm (2.75")

 Looking for a faster way to get perfectly even bevels when grinding blades?

Want perfectly fitting stick-tang blades into the guard or bolster?

  • 3.9 mm thick carbides screwed on, HRC 78
  • Non-magnetic, steel dust does not stick to it
  • Stainless steel, will not rust from being dunked in water
  • Bolts are recessed into the  body for easy access on flat platen
  • Accepts up to 70 mm wide blades (2.75"), up to 40 mm thick blades and guards (1.6")
  • Guide pins are hardened steel for an even more sturdy construction and no chance of jamming

How to use the knife makers file guide:

The file guide is used when grinding bevels on a knife blade, by clamping the blade between the jaws, enabling you to precision file both sides of the blade dead even using files or a grinder. The benefits are blade bevels starting perfectly even, and stick tang shoulders being dead square and even for perfect bolster fit.

When fitting a stick tang guard or bolster, it is critical that the slot sides are straight and parallell. By clamping the guard in the file vice, the carbide creates a hard border for the file, ensuring a tight, crips guard fit.

The file guide is in solid stainless steel, and will not rust when dunked in water during grinding to keep the blade cool. Steel dust will not stick to the non-magnetic steel.

The face is protected by carbide strips, which only diamond or other exceptionally hard tools will scratch. These are 78 HRC and very hard but: NOTICE ceramic belts can and will damage carbide. This tools is for use with hand tools, or aluminum oxide belts if using a grinder. The carbides are 3.9 mm thick and can be replaced if required.

The carbide strips are recessed slightly down into the stainless steel for added protection. This way the strips will not be knocked off or out of alignment. This also ensures there is less pressure on the carbide strip when clamping in a blade as they back onto a shoulder of steel.

The file guide accepts up to 70 mm wide blades (2.75"), and up to 40 mm (1.6") thick blades and guards.

This  is the new "v6"  model released in 2023 with flat bottomed holes in the carbides allowing for sideways adjustment.  It comes with allen keys included (metric) and the guide pins are hardened steel.

Dimensions are 100 mm x 15 mm x 65 mm in size (4" x 0.38 x 2.56"), made from solid 12 x 12 mm (0.5") stainless steel and accepts up to a 40 mm (1.6") thick blade/guide after feedback from the knife maker community, for allowing bigger guards to be filed.

The file guide has the Nordic Edge logo laser etched on one side,being designed by Bjorn from Nordic Edge in Sydney, Australia and custom engineered to our specifications.
