BigMert, Carbide Faced File Guide

Sale price Price $189.00 Regular price

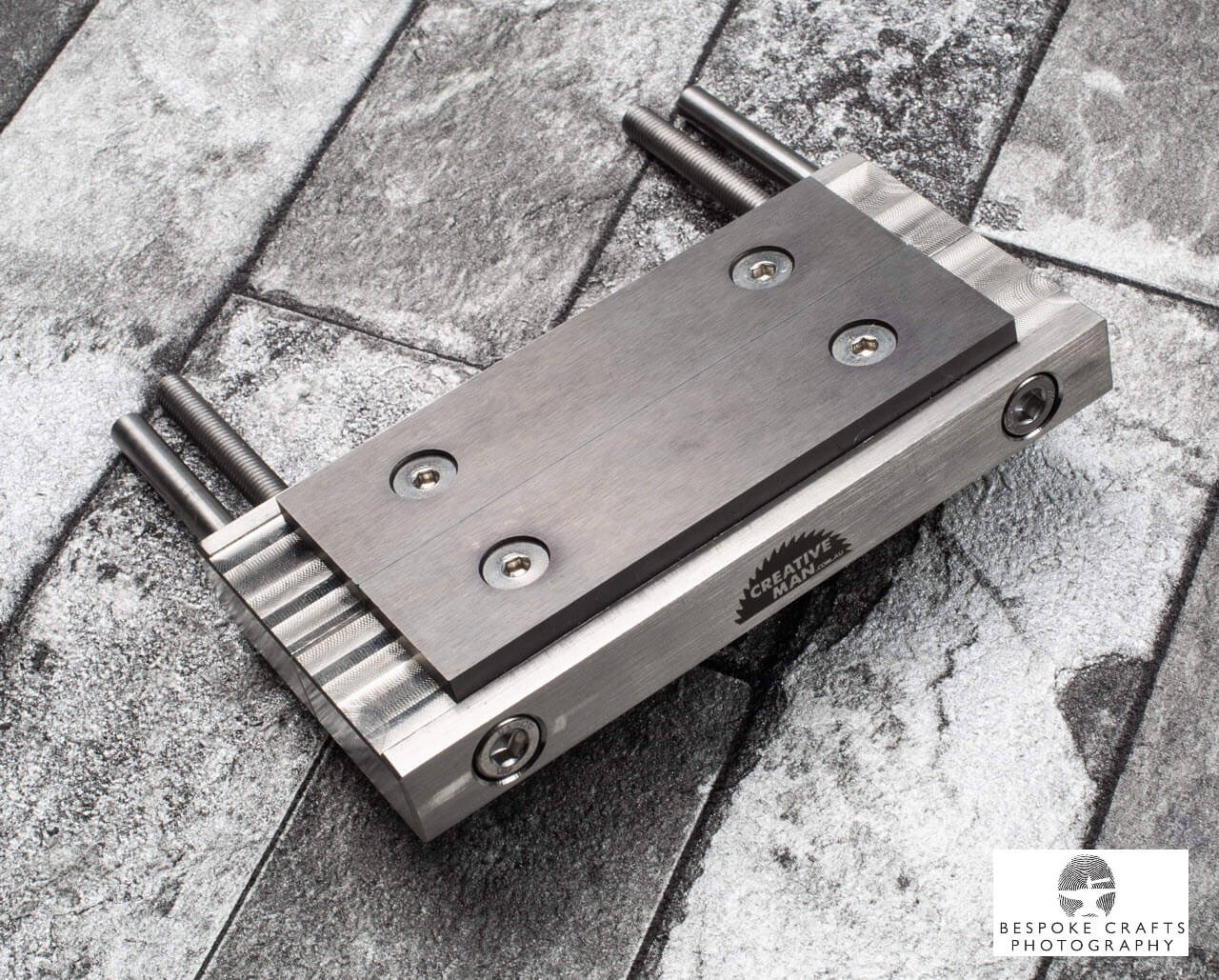

Carbide Faced File Guide, Stainless Steel, The BIGMERT!

Bigger version of our popular Carbide Faced File Guide, a collaboration project with Mert Tansu or "BigMert" from Tansu Knives https://tansuknives.com/

Mert Tansu is well-known knifemaker of chef knives, located in the Hunter Valley, NSW, Australia. Born in Turkey and with a background as an Executive Chef in the US and in Australia, Mert hung up his chef jacket in 2018 to focus full-time on knife making.

Mert approached us to make a custom version of the file guide, and taking his obsession for perfection he brought from the kitchen to knife making, Mert helped us develop a new, bigger file guide.

Here it is, the BigMert;

 **** this site is for customers in the USA who get the product quicker from here than from our Australian site. If not in the USA, check our main site NordicEdge.com.au in Australia ***

  • Massive 49.5 mm wide body for better control on wide blades
  • Each carbide strip is 20 mm wide, 80 mm long and 3.9 mm thick, at HRC 78
  • Non-magnetic, steel dust does not stick to it
  • Stainless ,will not rust
  • All screws are recessed into the  body for easy access on flat platen
  • Accepts up to 70 mm wide blades, up to 40 mm thick blades and guards
  • Guide pins are hardened steel for an even more sturdy construction and less chance of jamming

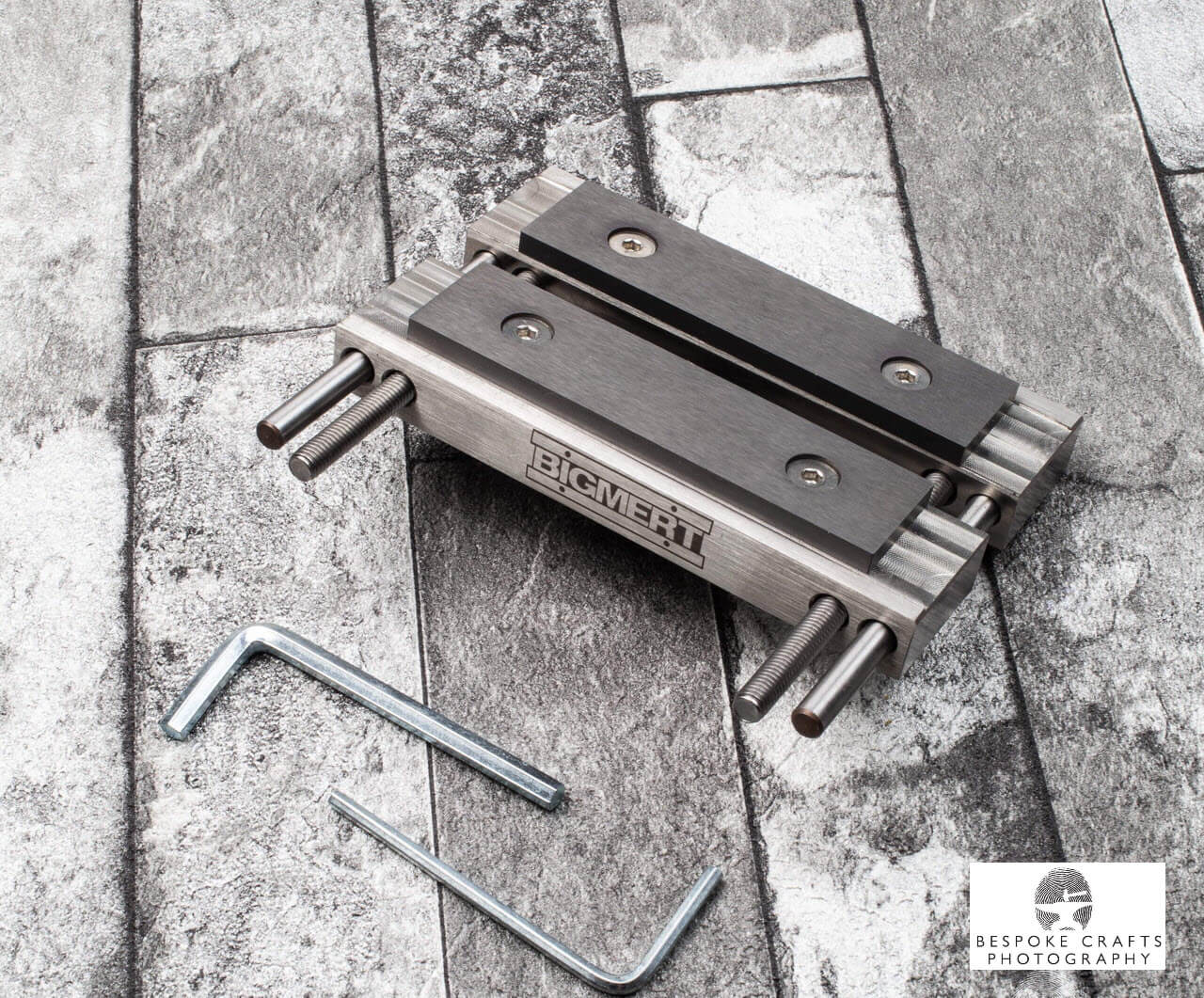

  • CreativeMan logo on one side and a custom BigMert logo on the other
  • Dimensions are 100 x 85 x 15 mm

The file guide is used by clamping the blade between the jaws, enabling you to precision file both sides of the blade dead even using files or a grinder. The benefits are blade bevels starting perfectly even, and stick tang shoulders being dead square and even for perfect bolster fit.

Or anything else you need to file two sides to be the same on..

The file guide is in solid stainless steel, and will not rust when dunked in water during grinding to keep the blade cool. Steel dust will not stick to the non-magnetic steel.

The face is protected by carbide strips, which only diamond or other exceptionally hard tools will scratch. These are 78 HRC and very hard but: NOTICE ceramic belts can and will damage carbide. This tools is for use with hand tools, or normal aluminum oxide belts if using a grinder. The carbides are 3.9 mm thick and can be replaced if required.

The carbide strips are recessed slightly down into the stainless steel for added protection. This way the strips will not be knocked off, or be under pressure when clamping a blade in the file guide. This also ensures there is less pressure on the carbide strip when clamping in a blade as they back onto a shoulder of steel.

The file guide accepts up to 70 mm wide blades (2.75"), and up to 40 mm (1.6") thick blades. Shipping is free in Australia, $10 to NZ and about USD 27-29 to USA.



Note this fits on both sides of the platen of for instance the Noob Grinder/Shopmate as the long bolts only point inwards when used on the right side of the platen, where there is space for them. When grinding on the left side of the platen, the bolts point towards you, and the recessed bolt heads make sure you have access on both sides.

Note this is a precision hand tool and can be hard to open the first few times. As any file guide it needs to be screwed on firmly and evenly, letting the guide pins do their job.
